HIZLAN BALATA
65 YEARS OF EXPERIENCE
We serve for the heavy industry sector with a wide range of products!
ABOUT US
Hızlan Balata is a well-known company, established in 1950 by Mustafa Hızlan. Today, it’s managed by his son Zeki Hızlan and his grandson Mustafa Hızlan. The company that aims to provide the high quality service for their customers sells different types and dimensions of brake linings prior for shipping, petroleum and mining industry besides the whole market for three generations. In 2000, Hızlan Balata has started importation to increase the quality and diversity of its products and became the General Distributor of “TRIMAT” - the leading brake linings manufacturer of England – in Turkey. With 65 years of experience, Hızlan Balata is still working to provide the highest quality service with a wide range of products for their customers.

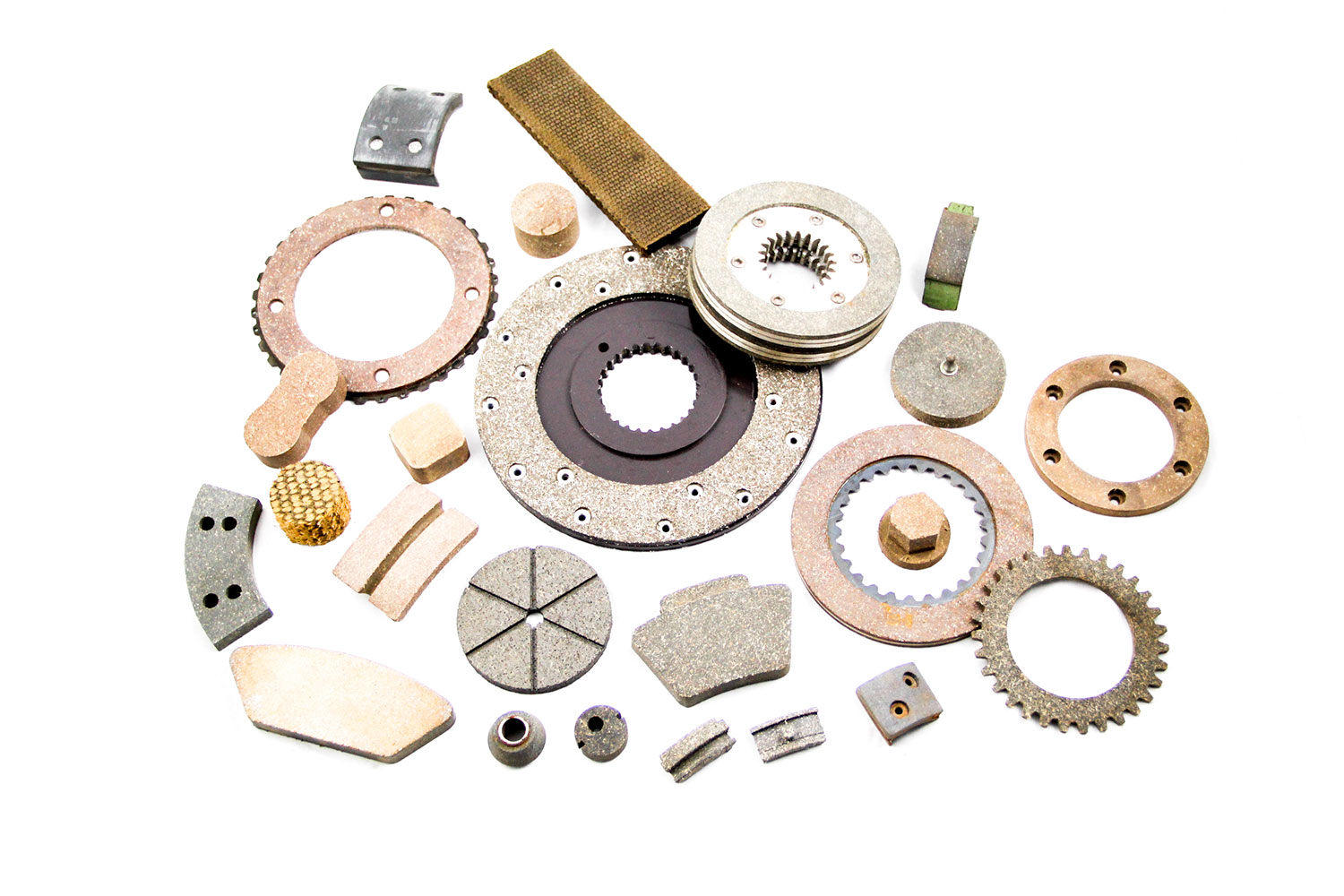

PRODUCTS
Different width and densities of ISO 9001:2008 and Germanischer Llyod certificated products:

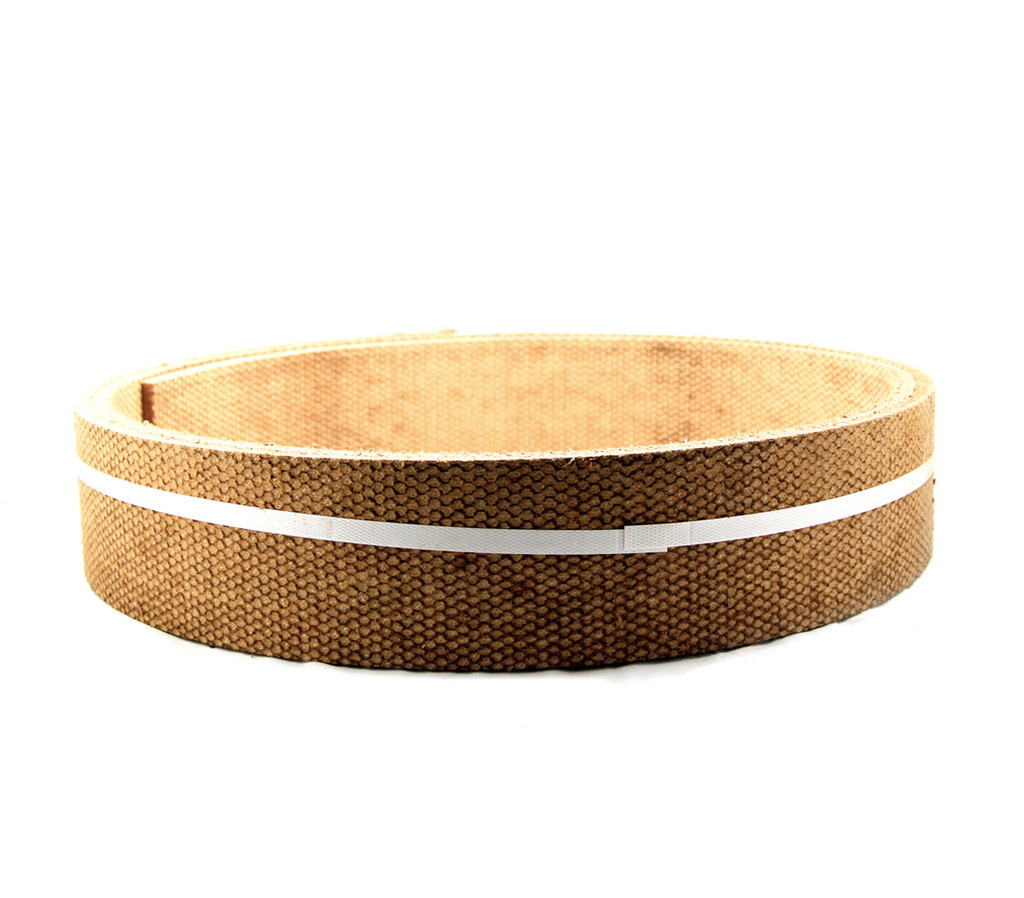

WOVEN FRICTION MATERIAL
Recommended operating range
Technical details
Typical Values
Coefficient of Friction
0.48
Wear Rate
11.08 mm3/MJ (0.0018 inch3/hp.hour)
Specific Gravity
1.24
Rivet holding capacity
102.0 N/mm2 (1.4780 psi)
Ultimate tensile strength
34.0 N/mm2 (4930 psi)
Ultimate shear strength
27.7 N/mm2 (4017 psi)
Ultimate compressive strength
137.0 N/mm2 (19865 psi)
Recommended operating range
Maximum ıntermittent temperature
230 C (450 F)
Maximum continuous temperature
150 C (300 F)
Pressure
0.07 -2.0 N/mm2 (10-290 psi)
Maximum rubbing speed
25m/s (5000ft/min)

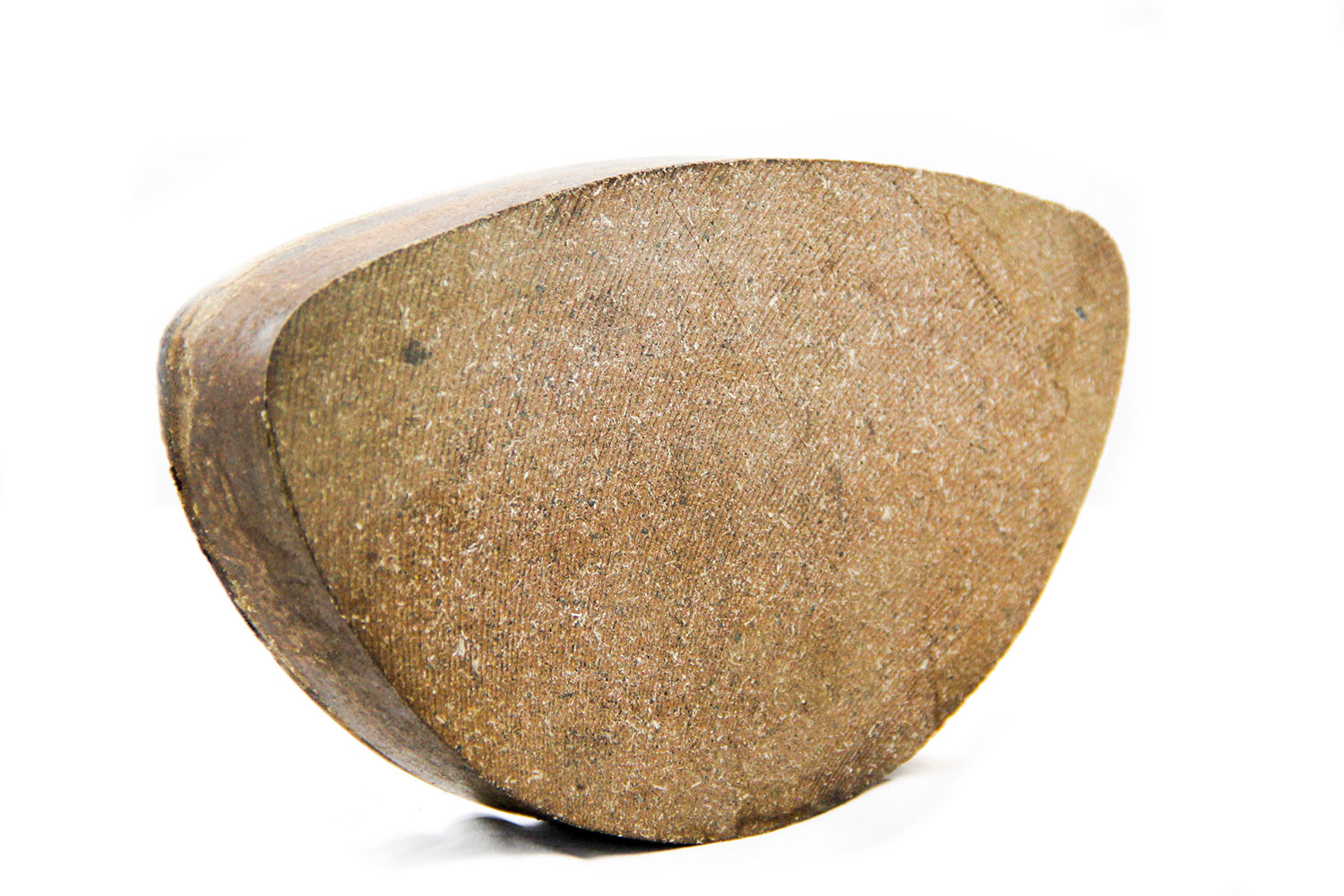

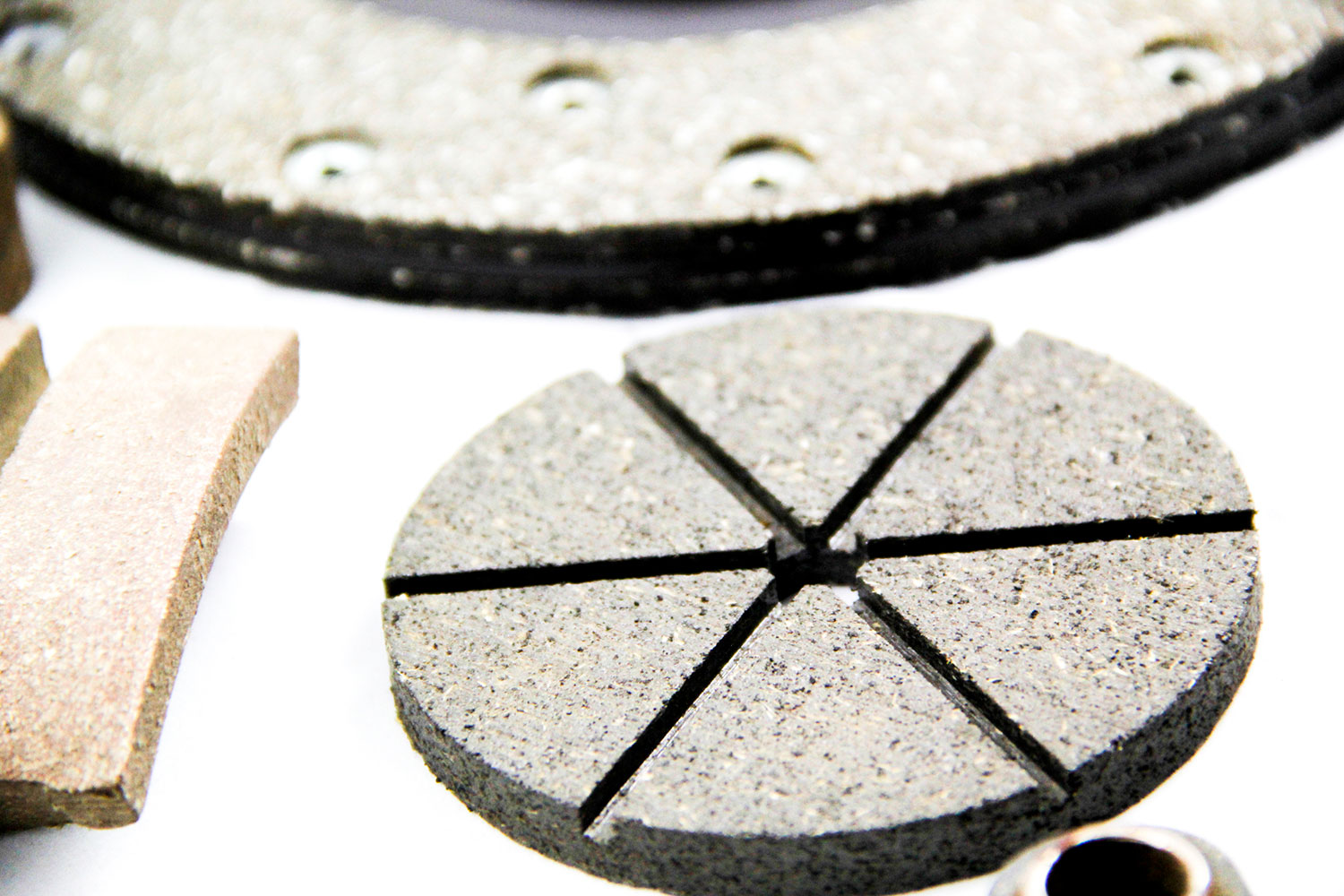

PRESS MOULDED FRICTION MATERIAL
Recommended operating range
Technical details
Typical Values
Coefficient of Friction
0.35
Wear Rate
50 mm3/MJ (0.0082 inch3/hp.hour)
Specific Gravity
1.95
Ultimate tensile strength
28.0 N/mm2 (4060 psi)
Ultimate shear strength
24.5 N/mm2 (3553 psi)
Ultimate compressive strength
150.0 N/mm2 (21750 psi)
Recommended operating range
Maximum ıntermittent temperature
400 C (750 F)
Maximum continuous temperature
150 C (570 F)
Pressure
0.07 -2.0 N/mm2 (10-290 psi)
Maximum rubbing speed
25m/s (5000ft/min)

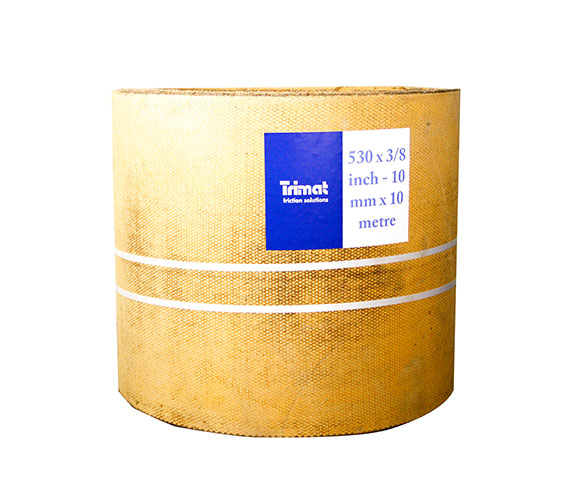

ROLL FORMED FRICTION MATERIAL
Recommended operating range
Technical details
Typical Values
Coefficient of Friction
0.42
Wear Rate
22 mm3/MJ (0.0036 inch/hp.hour)
Specific Gravity
2.00
Ultimate tensile strength
15 N/mm2 (2175 psi)
Ultimate shear strength
15 N/mm2 (2175 psi)
Ultimate compressive strength
75 N/mm2 (10875 psi)
Recommended operating range
Maximum ıntermittent temperature
325 C (617 F)
Maximum continuous temperature
250 C (482 F)
Pressure
0.07 -1.5 N/mm2 (10-218 psi)
Maximum rubbing speed
25m/s (5000ft/min)
OUR MANUFACTURING
